დაშვების წერტილი, WiFi, RG-RAP6260(G) Wi-Fi 6

Radio

Dual-stream dual-band

Protocol

Concurrent 802.11a/b/g/n/ac/ax

Operating Bands

802.11b/g/n/ac/ax ：2.4G ~ 2.4835GHz

802.11a/n/ac/ax： 5G：5.150～5.350GHz，5.725～5. (country specific)

Antenna

Internal antennas (2.4GHz: 4dBi，5GHz: 6dBi)

Spatial Streams

2.4 GHz 2x2 MU-MIMO

5 GHz 2x2 MU-MIMO

Max Throughput

Up to 574Mbps at 2.4GHz

Up to 1201Mbps at 5GHz

Totally 1775Mbps per AP

Modulation

DBPSK/DQPSK/CCK(DSSS)/BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM

Receive Sensitivity

11b：-91dBm(1Mbps)，-88dBm(5Mbps)，-85dBm(11Mbps)

11a/g：-89dBm（6Mbps），-80dBm（24Mbps），-76dBm（36Mbps），-71dBm（54Mbps）

11n：-83dBm@MCS0，-65dBm@MCS7，-83dBm@MCS8，-65dBm@MCS15

11ac HT20：-83dBm（MCS0）, -57dBm（MCS9）

11ac HT40：-79dBm（MCS0）, -57dBm（MCS9）

11ac HT80：-76dBm（MCS0）, -51dBm（MCS9）

11ax：HE80：-82dBm（MCS0）, -57dBm（MCS9）,-52dBm（MCS11）

Maximum Output Power of the Transmitter

(Single Stream)

2.4GHz(2.4~2.4835GHz)：26dBm

5GHz(5.150~5.250GHz,5.725~5.850GHz)：25dBm

（country-specific，comply with local laws）

Adjustable Power

1dBm

Dimensions

298mm×298mm×65mm (excluding mounting kits)

Weight

≤1.35kg (excluding mounting kits)

Service Ports

1 10/100/1000 Base-T Ethernet port supports PoE IN；

1 100/1000 Base-X SFP Port

Management Port

N/A

LED Indicator

Single indicator (Blue light)

Power Supply

802.3at PoE

(Warning：802.3af or non-standard POE adapter may cause unknown issues. Please use Ruijie POE+ switch or 802.3at POE adapter as power supplier)

Power Consumption

≤17W

Bluetooth

Support

Environment

Operating Temperature：-40°C～65°C

Storage Temperature：-40°C～85°C

Operating humidity：0%～100%, non-condensing

Storage humidity：0%～100%，condensing/non-condensing

Installation

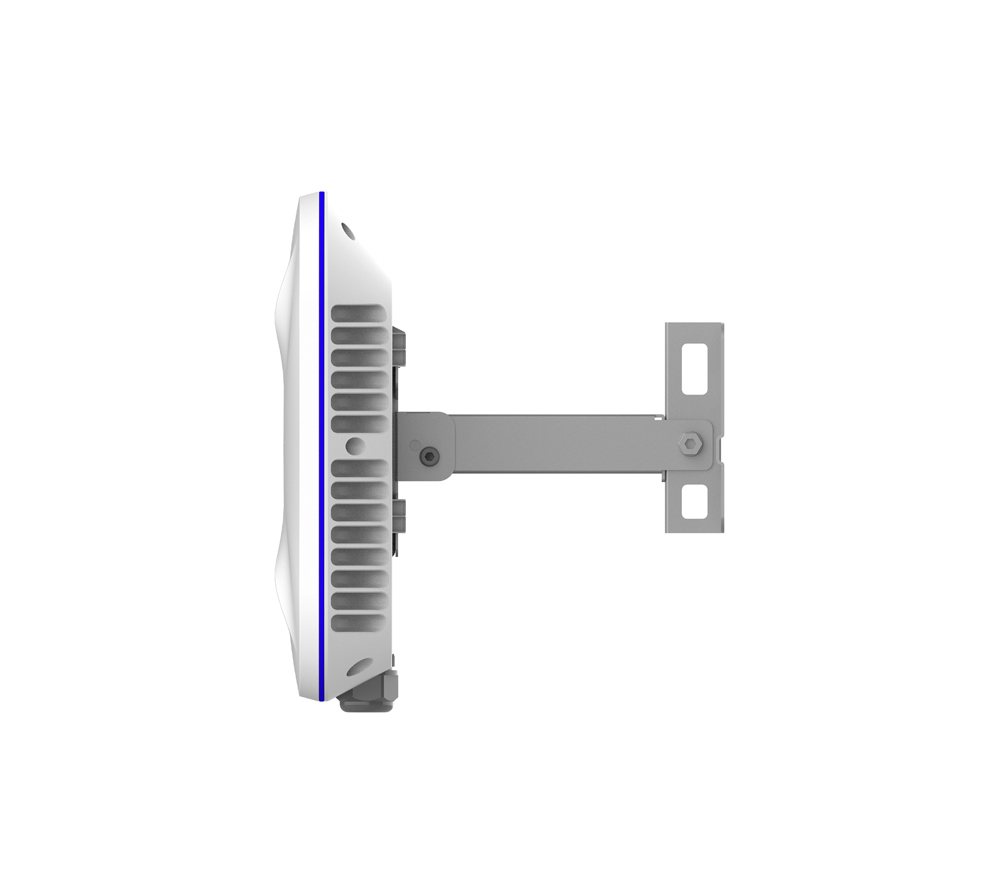

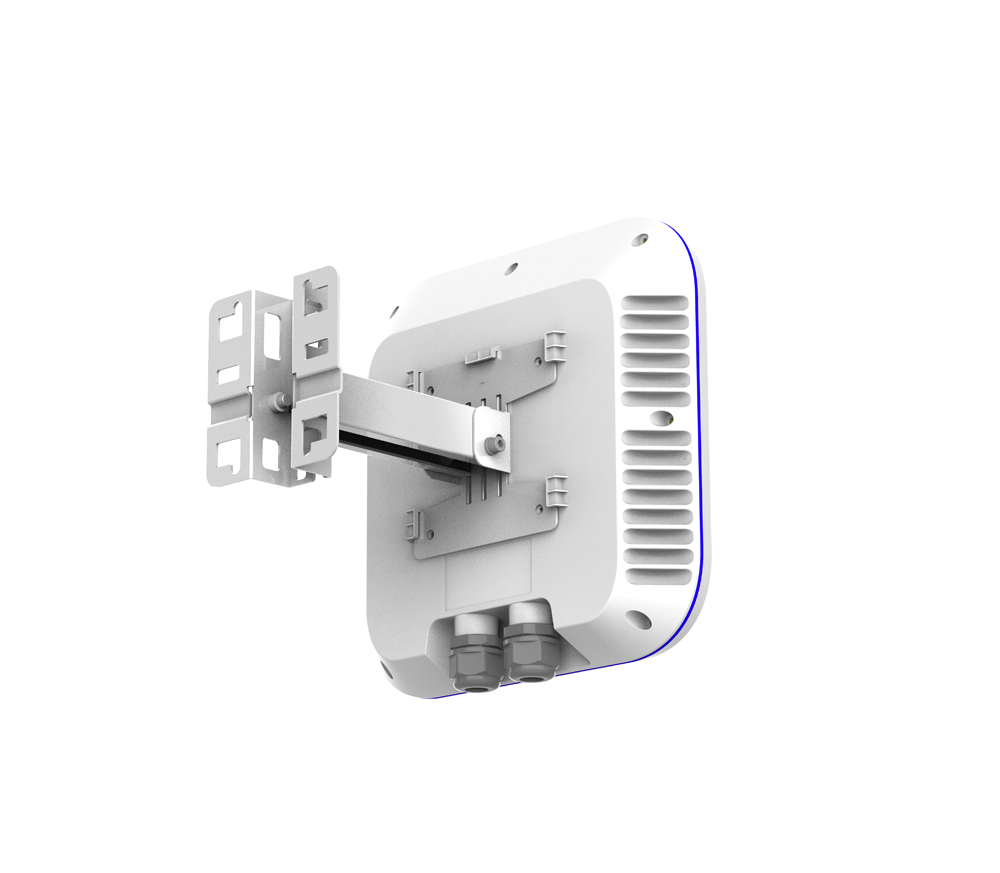

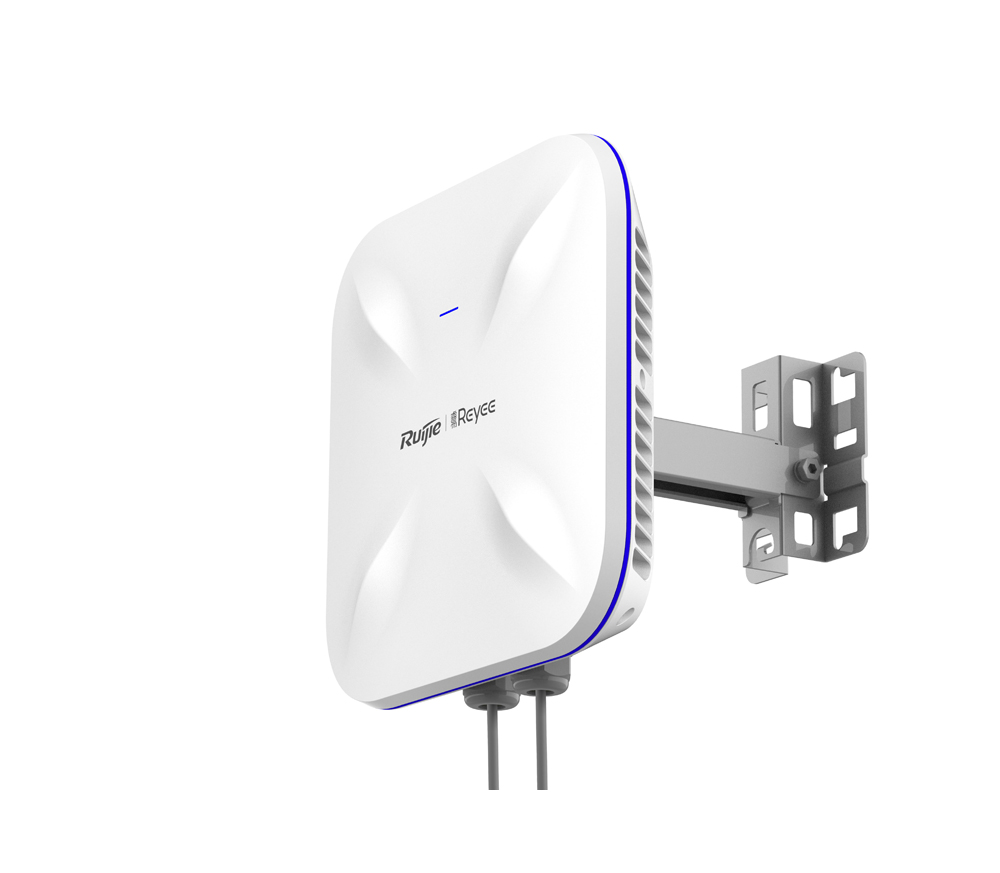

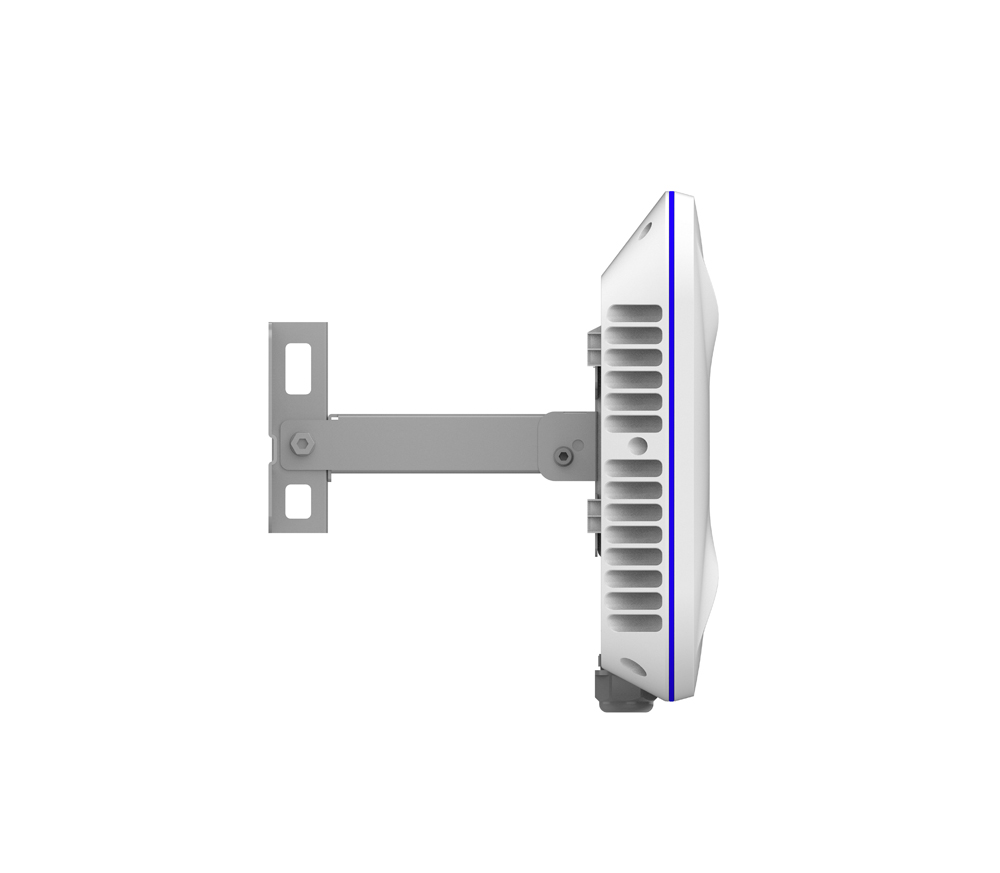

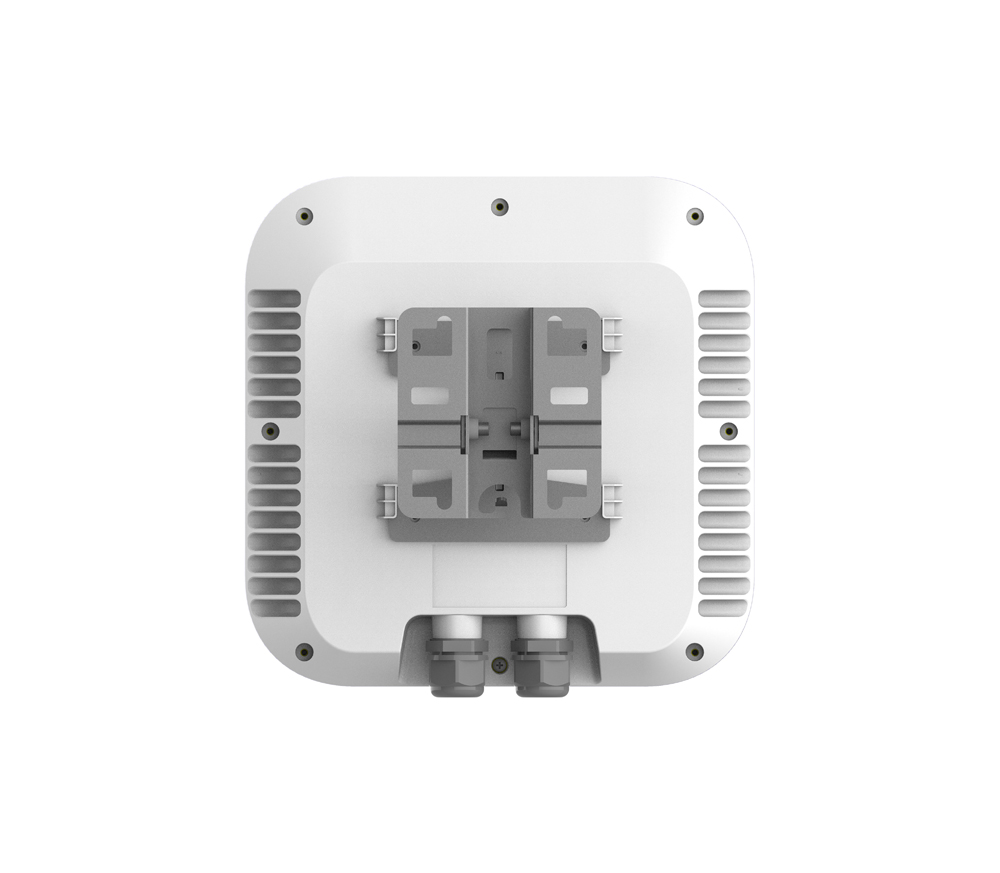

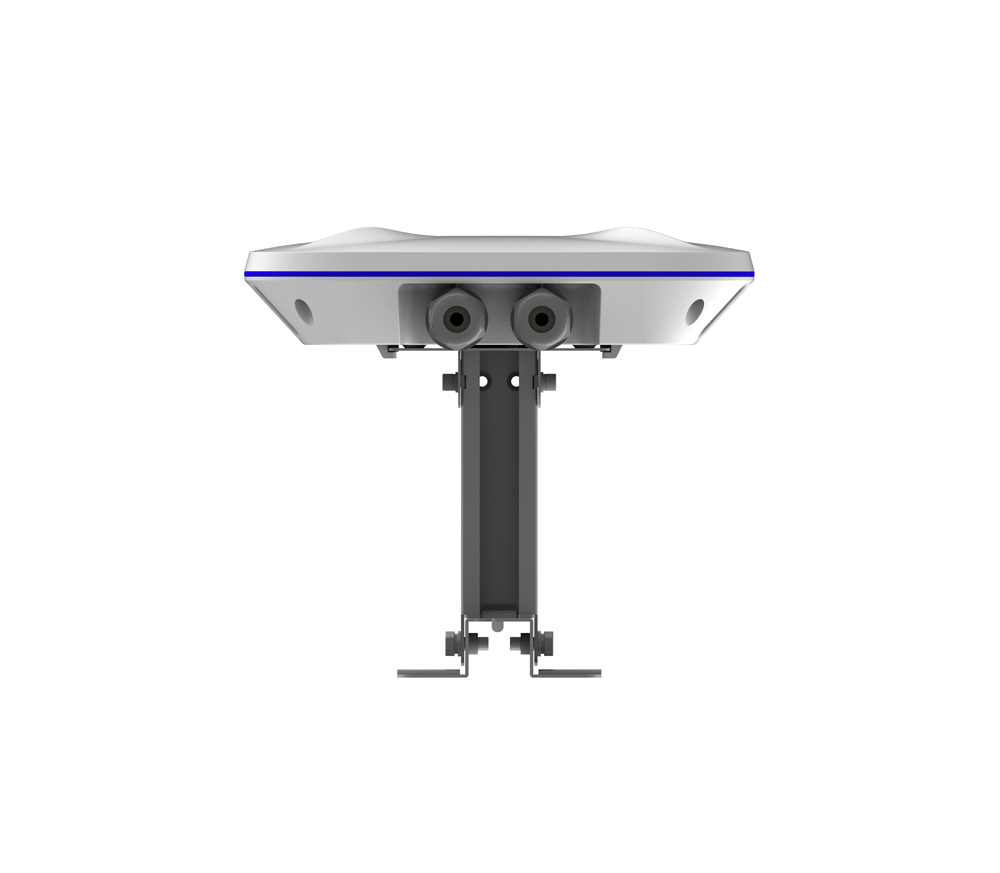

Pole/Wall-Mountable

Safety Standard

GB4943、IEC 60950-1

EMC Standard

GB9254、EN301 489，EN50155：EN50121

Vibration Standard

IEC61373

Radio Standard

EN300 328，EN301 893

MTBF

>400000H

WLAN

Maximum number of clients: 512

Recommended number of clients: 100

Up to 8 SSID

Support SSID hiding

Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Support Reyee Mesh

Roaming

Support layer 2 and layer 3 roaming

Security

Support PSK authentication

Support static blacklist and whitelist

Support WPA（TKIP）,WPA2（AES）,WPA-PSK data encryption

Routing

Support static IP address, DHCP, PPPoE Dial

Management and Maintenance

Support unified networking of all network equipment

Support local or remote management with Ruijie Cloud APP

Support local management with web

Support remote management with Ruijie Noc Cloud platform

Platform Management Features

Automatic RF adjustment via the platform

Unified configuration via the platform

Unified monitoring via the platform
