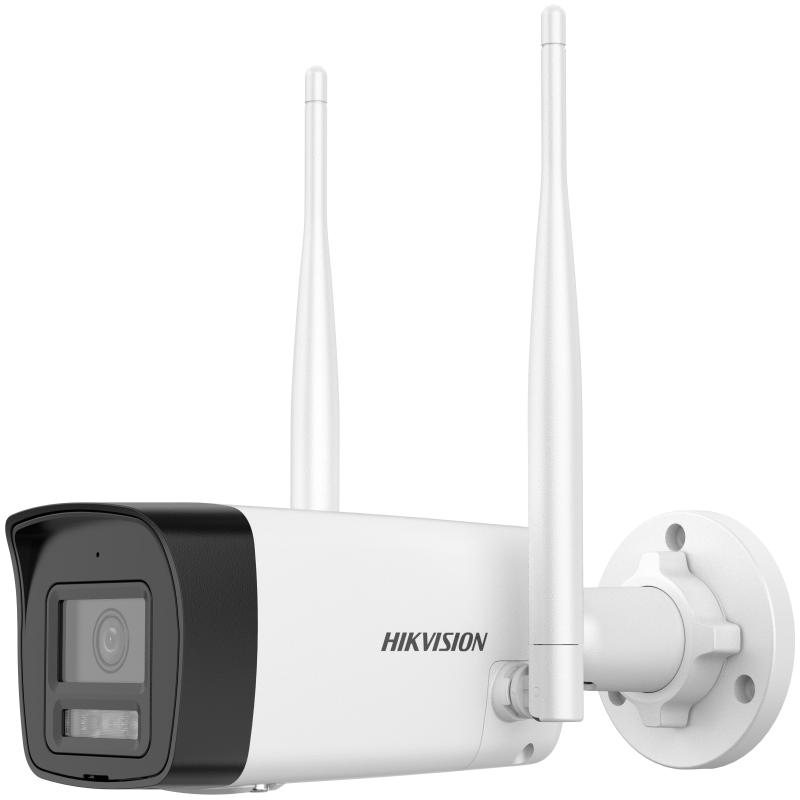

კამერა IP Hikvision,DS-2CV1023G2-LIDW(F)(B)4mm,2MP,Fixed,Bullet,IR/WL30m,Mic/Spk,WiFi,IP66,MicroSD,
პროდუქტის აღწერა
2 MP გარე გამოყენების Wi-Fi ფიქსირებული Bullet ქსელური კამერა
Wi-Fi 6-ის მხარდაჭერა
ღამის ხედვის კარგი მაჩვენებლები 30 მეტრამდე ინფრაწითელი (IR) და 30 მეტრამდე თეთრი განათებით
ჩაშენებული მიკროფონი და დინამიკი, ორმხრივი აუდიო კავშირის მხარდაჭერა
ადამიანისა და ავტომობილის დეტექციის მხარდაჭერა
წყალგაუმტარი და მტვერგამძლე (IP66)
შიდა მეხსიერების მხარდაჭერა 512 გბ-მდე (SD ბარათის სლოტი)
ტექნიკური დეტალები
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56°
- ApertureF2.0
- Iris TypeFixed
- Lens MountM12
- Depth of Field
2.8 mm: 0.8 m~∞
4 mm: 1.1 m~∞
6 mm: 2.3 m~∞
- DORI
- DORI
2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m
6 mm, D: 86 m, O: 34 m, R: 17 m, I: 8 m
- Illuminator
- Supplement Light TypeIR, White Light
- IR Wavelength850 nm
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432)
- Sub-Stream
50 Hz: 25 fps (768 × 432)
60 Hz: 30 fps (768 × 432)
- Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio CompressionG.711(ulaw)/ (AAC-LC)
- Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- SecurityPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
- ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Client
Wired network: Hik-Connect, iVMS-4200
Wi-Fi: iVMS-4200
*Wi-Fi connection with Hik-Connect directly is not possible
- Web BrowserLocal service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+
- Wi-Fi
- Frequency Range2.4 GHz to 2.4835 GHz
- Channel Bandwidth20/40 MHz
- Wi-Fi ProtocolIEEE802.11b,IEEE802.11g,IEEE802.11n,IEEE802.11ax
- Modulation
802.11b: DBPSK, DQPSK, CCK,
802.11g: BPSK, QPSK, 16QAM, 64QAM,
802.11n: BPSK, QPSK, 16QAM, 64QAM,
802.11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM
- Transfer Rate
11b: up to 11 Mbps,
11g: up to 54 Mbps,
11n: up to 150 Mbps,
11ax: up to 114 Mbps
- Image
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Day/Night SwitchDay, Night, Auto, Schedule
- Image EnhancementBLC, HLC, 3D DNR
- Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Privacy Mask4 programmable polygon privacy masks
- Interface
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes
- Built-in SpeakerYes
- Reset KeyYes
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),exception
- LinkageNotify surveillance center, send email, trigger recording, trigger capture, audible warning
- General
- Power12 VDC ± 25%, 0.55 A, max. 6.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,A switching adapter is included in the package.
- MaterialPlastic
- Dimension260.9 mm × 113.9 mm × 67.4 mm (10.3" × 4.5" × 2.7")
- Package Dimension300 mm × 130 mm × 100 mm (10.2" × 5.1" × 4.9")
- WeightApprox. 310 g (0.68 lb.)
- With Package WeightApprox. 550 g (1.12 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat, anti-banding, mirror, password protection
- Approval
- EMCCE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
- RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G)
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
