კონტროლერი ბარათის წამკითხველი DS-K1T200MF-C
არ არის მარაგში
0.00 ₾
ბრენდი
Hikvision
მოდელი
-
კოდი
NT-01316
გარანტია
N/A
გადახდა
ონლაინ/ბანკი
სტატუსი
არ არის
პროდუქტის აღწერა

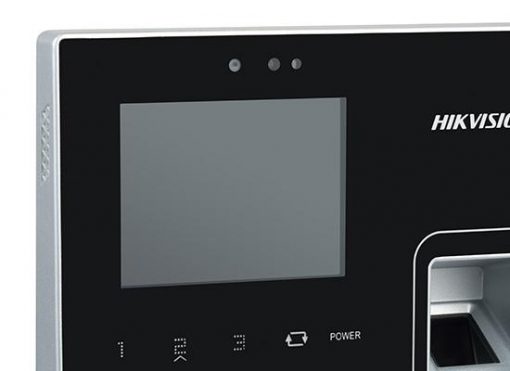

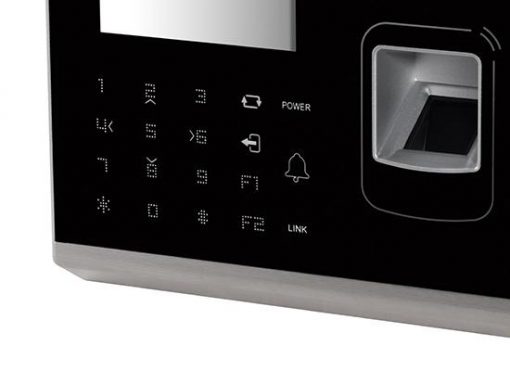

DS-K1T200 is a series optical IP-based fingerprint access control terminal with multiple advanced technologies including fingerprint recognition, face detection, Wi-Fi, smart card recognition, LCD display screen, and picture capturing technology. It is designed with a 2.8-inch LCD display screen. It is equipped with optical fingerprint recognition module
ტექნიკური დეტალები
| SYSTEM PARAMETERS | ||
|---|---|---|
| Card Reading Frequency: | EM Card (DS-K1T200EF/EF-C): 125KHz; Mifare Card (DS-K1T200MF/MF-C): 13.56MHz | |
| Fingerprint Recognition Duration: | 1:1≤1s, 1:1000≤1s | |
| Operation System: | Linux | |
| Storage: | 256M Storage | |
| FRR (False Rejection Rate): | ≤0.01>#/td### | |
| FAR (False Accept Rate): | ≤0.001>#/td### | |
| Card Reading Mode: | Supports EM card reading (DS-K1T200EF/EF-C) Supports Mifare card reading, including card No. reading, and sector reading & writing (DS-K1T200MF/MF-C) | |
| Camera: | 2MP (Optional) | |
| Fingerprint Capacity: | Max. 4750 People (Two Local Collected Fingerprint Templates for Each Person, 9500 Fingerprints in Total) | |
| Processor: | 32 Bit High-performance Processor | |
| DEVICE INTERFACES | ||
|---|---|---|
| Accessible Card Reader: | RS485 IC Reader | |
| Communication Mode: | TCP/IP, Wi-Fi, RS-485, and Wigand 26/34 (under the card reader mode only) | |
| Output Interface: | Doorbell×1, Relay×1 | |
| Transmission Rate: | TCP/IP, WIFI: 10/100Mbps Self-adaptive, RS-485: 19200 bps-N-8-1 | |
| Input Interface: | Doorbell Button × 1， Door Sensor × 1， Alarm Input × 2， Tamper-Proof Switch × 1， Exit Button × 1 | |
| GENERAL | ||
|---|---|---|
| LCD Screen: | 320×240 LCD-TFT Display Screen | |
| Working Current: | ≤500mA | |
| Key Board: | 17 Keys | |
| Power Supply: | 12VDC | |
| Audio: | 1 Buzzer, 1 Loudspeaker | |
| LED Indicator: | Power/ Communication | |
| Working Humidity: | 10% to 90% (Non-Condensing) | |
| Working Temperature : | -30°C to 65°C (-22°F to 149°F) | |
| Dimensions (L×W×H): | 137mm × 142mm × 35mm (5.4” × 5.6” × 1.4”) | |
| Weight: | 400g (0.88lb) | |
