Hikvision, DS-QAE0A60G1-VB, ანალოგური ხმის გამაძლიერებელი
პროდუქტის აღწერა

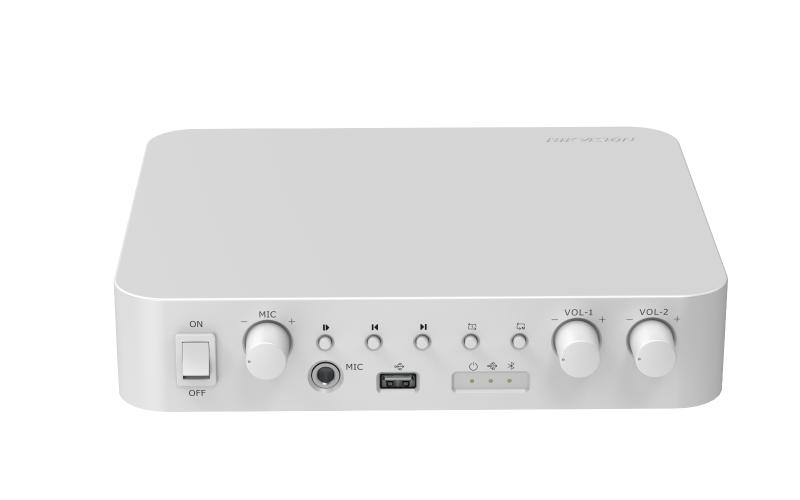

Analog Amplifier 60W
- Support four types of audio input: Bluetooth, USB flash drive, microphone, and RCA, with flexible and convenient operation
- Built-in Bluetooth module, support fast Bluetooth playback
- Support plugging in the USB flash drive to play audio sources
- Support independent microphone volume control and two-channel partition volume control
- Support two-channel audio mixing output
- Adopt high-strength engineering plastics, sturdy and durable
- Integrated functional design, convenient and reliable
ტექნიკური დეტალები
- Function
- Protection Functionshort circuit protection, overcurrent protection, over temperature protection, anti-static electricity protection, surge protection, electrical shock protection
- Audio
- Rated Power
60 W
24 VDC
- Frequency Response
USB, Bluetooth: 20 Hz to 20 kHz
MIC, RCA Input: 20 Hz to 8 kHz
- >span class="tech-specs-items-description__title-details">
THD: ≤1>#/p###
SNR: ≥100 dB
- Interface
- Audio In
MIC 1: -20 dBV, 4 KΩ,unbalance, 6.35 mm jack
USB 2.0 × 1
RCA in 1: 0 dBV, 5 KΩ, unbalance, RCA pin jack
Bluetooth
- Audio Out
Constant Voltage Output × 2，100 V COM
Constant Resistance Output × 2，30 W 4 Ω to 8 Ω
RCA Out 1: 0 dBV, 100 Ω, unbalance, RCA pin jack
RCA Cascading: support a cascade of up to 3 amplifiers
Bluetooth
- LED Indicator
Power indicator (solid white): the device is normally working
USB flash drive indicator (solid white): the device is in USB mode
Bluetooth indicator (solid blue): the device is in Bluetooth mode
USB flash drive indicator (off) and Bluetooth indicator (off): the MIC input and RCA input are mixed
- Volume KnobMIC Volume Knob × 1，Partition 1 Volume Knob × 1，Partition 2 Volume Knob × 1
- USB
USB 2.0
File format: FAT32
USB flash drive file playing logic: traverse play level 3 directory files in the USB flash drive.
- Power InterfaceAperture size: Ø2.0 mm
- General
- MaterialPlastic
- Dimension190.8 mm × 230.8 mm × 51.2 mm (7.48" × 9.06" × 2.01")
- Package Dimension362 mm × 280 mm × 100 mm (14.25" × 11.02" × 3.94")
- Approx. 1445.5 g (3.19 lb.)
- With Package WeightApprox. 2113.3 g (4.66 lb.)
- ColorWhite
- Packing List
Device × 1
Power Adapter × 1
Power Cord × 1
Regulatory Compliance and Safety Information × 1
- BluetoothBluetooth 5.3，10 m
- Operating Temperature-10 °C to 55 °C(14 °F to 131 °F)
- Operating Humidity＜90% (No condensation)
- Power Consumption
Standby Consumption: 1 W
Annual Average Consumption: Max. Working Consumption: 60 W (based on the average playing time)
