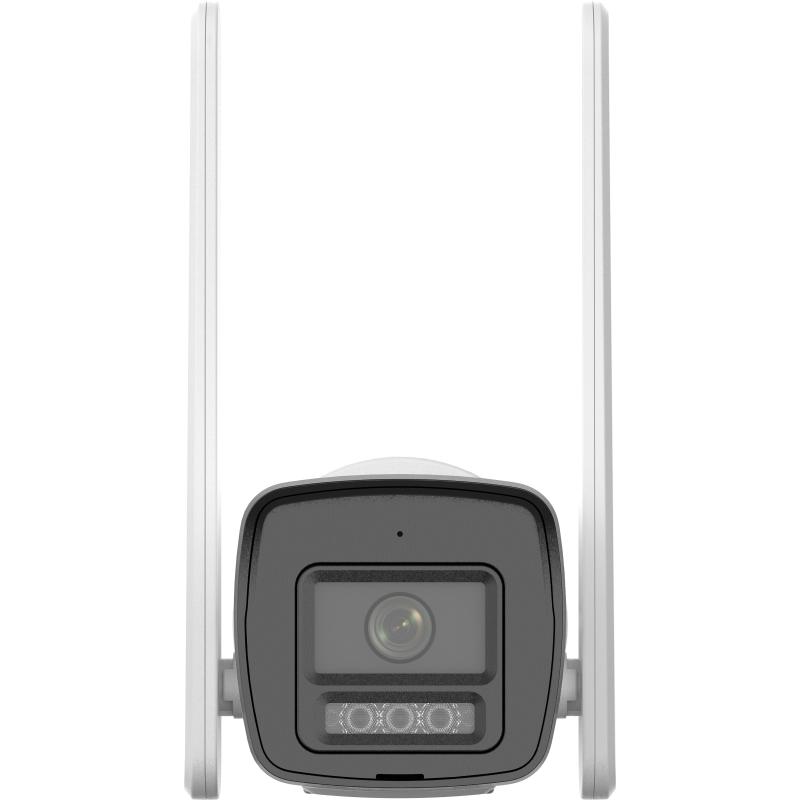

IP Hikvision,DS-2CD1023G2-LIDUF/4G/SL(4mm)Bullet,IR,WL30m,Hybrid Light,4G LTE,Mic,SDcard,
პროდუქტის აღწერა
2 მეგაპიქსელიანი გამოსახულება: უზრუნველყოფს მაღალი ხარისხის კადრებს 2 MP გაფართოებით.
ადამიანისა და მანქანის ამოცნობა: ინტელექტუალური ფუნქცია, რომელიც ამოიცნობს და განარჩევს ადამიანსა და მანქანას.4G LTE მონაცემთა გადაცემა: მხარს უჭერს 4G ქსელს.
ჩაშენებული ორმხრივი აუდიო: უზრუნველყოფს რეალურ დროში კომუნიკაციას.
Smart Hybrid Light: ჭკვიანი ჰიბრიდული განათება 30 მეტრამდე მანძილზე.
მეხსიერების ბარათის მხარდაჭერა: აქვს ჩაშენებული მეხსიერების ბარათის სლოტი, რომლის მეშვეობითაც შესაძლებელია მეხსიერების გაფართოება 512 GB-მდე.
IP67 დაცვა: წყალგამძლე და მტვერგამძლე.
H.265+ შეკუმშვის ტექნოლოგია: უზრუნველყოფს ვიდეოს ეფექტურ შეკუმშვას.
ტექნიკური დეტალები
- Camera
- Image Sensor1/2.9" Progressive Scan CMOS
- Max. Resolution1920 × 1080
- Min. IlluminationColor: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 121°
4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
- Lens MountM12
- Iris TypeFixed
- ApertureF2.2
- DORI
- DORI
2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
4 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (768 x 432)
60 Hz: 30 fps (768 x 432)
- Video Compression
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Region of Interest (ROI)1 fixed region for main stream
- Audio
- Audio TypeMono sound
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Audio CompressionG.711/AAC-LC
- Audio Bit Rate64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
- Network
- SecurityPassword protection, complicated password, HTTPS encryption, watermark, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
- ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SMTP, SNMP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- ClientiVMS-4200,Hik-Connect
- Web Browser
Local service: IE11, Chrome 57.0+, Firefox 52.0+, Edge 89+
- Mobile Communication
- StandardLTE-FDD
- FrequencyLTE-FDD:B2/3/4/5/7/8/28/66
- Uplink and Downlink Data RateCat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
- SIM Card TypeNano SIM
- Image
- Wide Dynamic Range (WDR)Digital WDR
- SNR≥ 52 dB
- Privacy Mask4 programmable polygon privacy masks
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Image SettingsSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Built-in SpeakerMax. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
- Reset KeyYes
- Event
- Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light
- General
- Power12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug,reverse polarity protection
- MaterialPlastic
- Dimension238.5 mm × 97.6 mm × 67.4 mm (9.39" × 3.84" × 2.65")
- Package Dimension530 mm × 524 mm × 325 mm (8.5" × 4.8" × 4.6")
- WeightApprox. 390 g (0.84 lb.)
- With Package WeightApprox. 722 g (1.59 lb.)
- Storage Conditions-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 40 °C (-22 °F to 104 °F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionHeartbeat,anti-banding,mirror,password protection,password reset via email
- Flashing LightYes,White Light
- Approval
- EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Safety
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
- Environment
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
